Durable 3 Phase Industrial Socket Polyamide Material 381g Light Weight

Name: Durable 3 Phase Industrial Socket Polyamide Material 381g Light Weight
Brand: HYPER
Price: 1 USD

Brand Name : HYPER

Model Number : 6

Certification : DIN VDE 0623 EN/IEC 60309-2

Place of Origin : China

MOQ : 500pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs / month

Delivery Time : 15 days

Packaging Details : packed by standard paper carton

Name : Connector

Poles & Current : 5 poles 32 amps

Voltage : 400V

Material : Polyamide

Protection type : IP44 Weather Protect

Product Weight : 381g

Contact Now

5P 32Amps IP44 Red Plugs and connectors with Cover 3 phase Industrial Socket part no. 6

Description:

The contacts in the plug are simple cylinders (sleeves), while the pin contacts in the receptacle have the spring arrangement to hold contact pressure, the reverse of the IEC 60309 type connectors. All contacts are the same diameter. Originally metal construction was used, but now they are also made with plastic shells. Since only keying in the connector shell is used, and since the keys can be damaged in industrial use, it is possible to mis-match worn connectors.

Part no. 6

Technique Parameter:

Current	Poles	110V 50a.60Hz	230V 50a.60Hz	400V 50a.60Hz	500V 50a.60Hz	>50-500V 100-300Hz	>50-500V a.300-500Hz	Package Unit	Weight
Current	Poles	3P 4P 5P 4h 4h 4h	3P 4P 5P 6h 9h 9h	3P 4P 5P 9h 6h 6h	3P 4P 5P 7h 7h 7h	3P 4P 5P 10h 10h 10h	3P 4P 5P 2h 2h 2h	PCS/BOX	G/PC
32A	3	521	522	523		2196	2674	10	323
	4	524	525	526	527	528	529	10	346
	5	530	531	6	2027	2245	2493	10	381

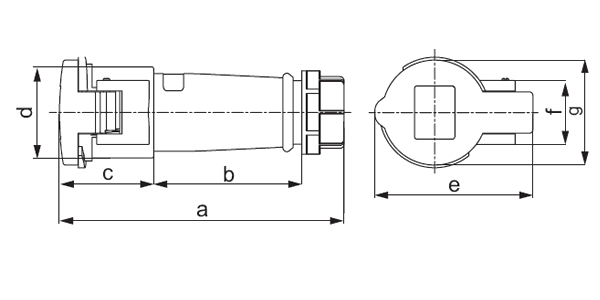

Current	Poles	a	b	c	d	e	f	g
32A	3	200	106.5	64.2	64.2	101.8	37	71.6
	4	200	106.5	64.2	64.2	101.8	37	71.6
	5	200	108.7	62.7	70.8	111	37	79.5
Conductor cross-sectional area (mm²) Min To Max 4-6

Product Dimension:

Durable 3 Phase Industrial Socket Polyamide Material 381g Light Weight
